Compact Ultra-thin Safety Light Curtain EB15
Category:
SAFETY LIGHT CURTAIN
ESPE safety light curtains are widely used in hazardous areas to avoid any industrial accidents caused by access the danger area, and also monitoring of automated manufacturing cells and production line.

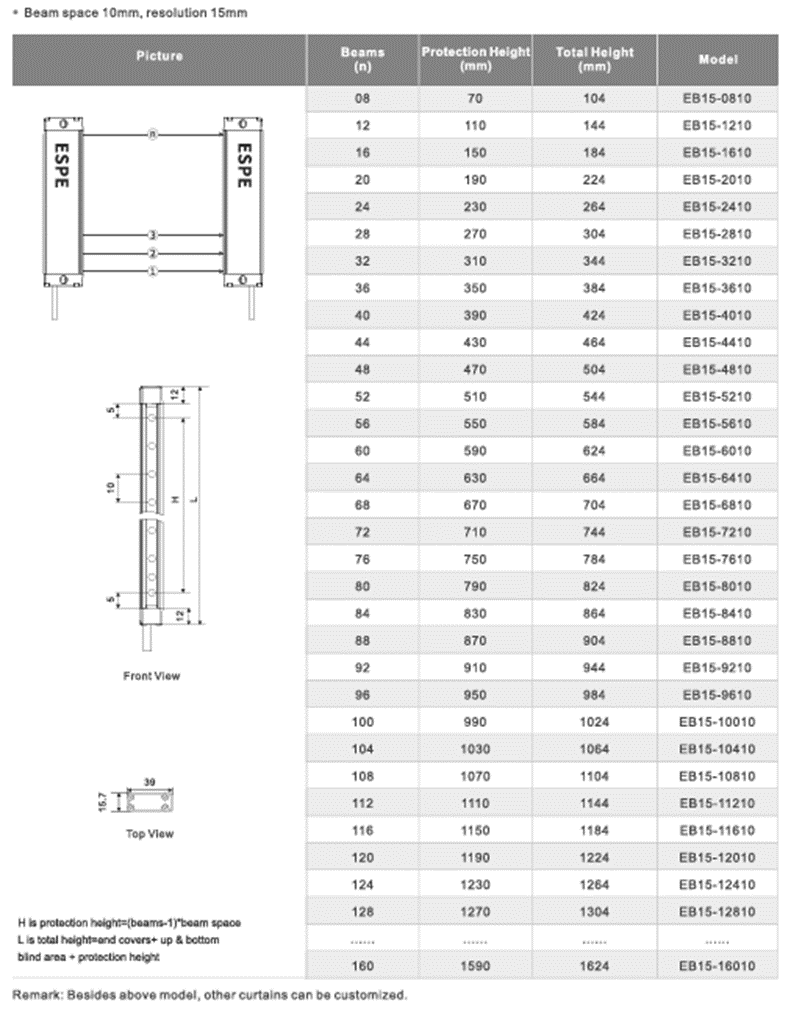

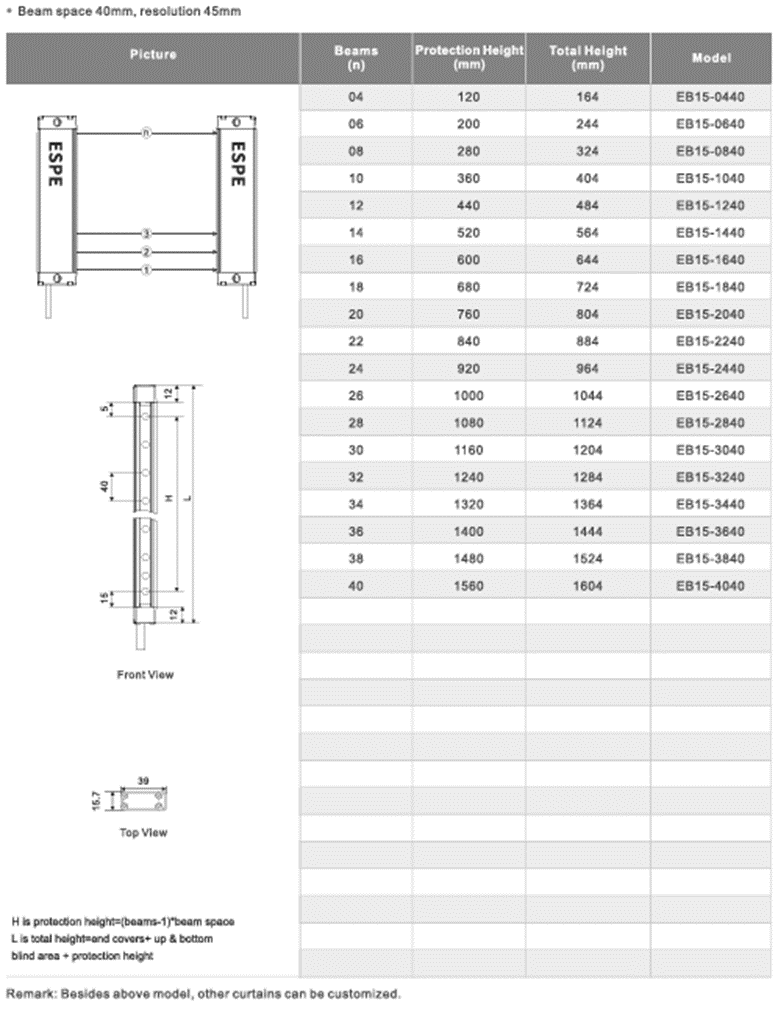

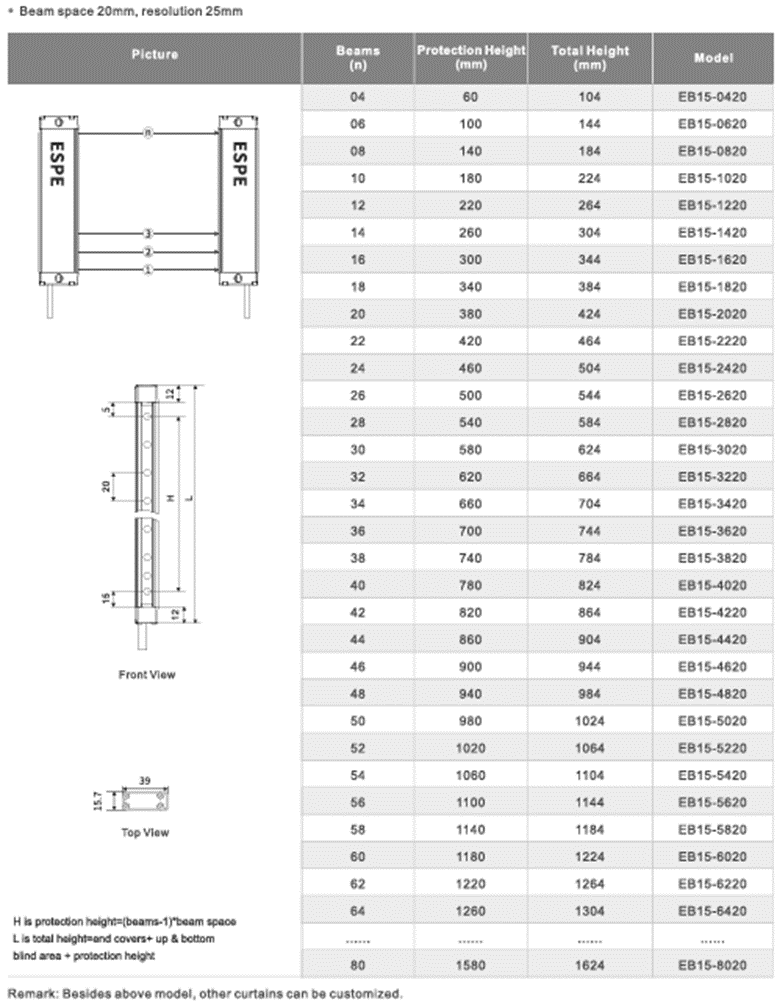

Model :
.png)
.png)
.png)
Features :
- 15mm ultra-thin light emitting
- Quick response
- Lower wide voltage DC10-30V
- Strong ability against interference of electromagnet of different motor
- Wire synchronization against light interference
- Screw fixing mounting ensure easy installation
- Sectional size 39 × 15mm.
Applications :

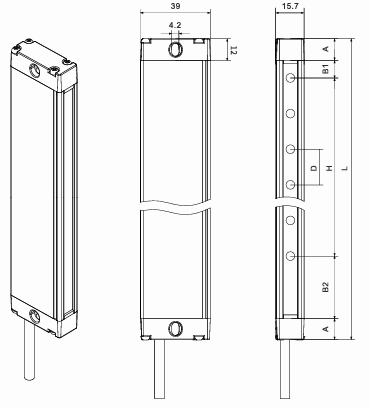

Dimension :
.png)
.png)

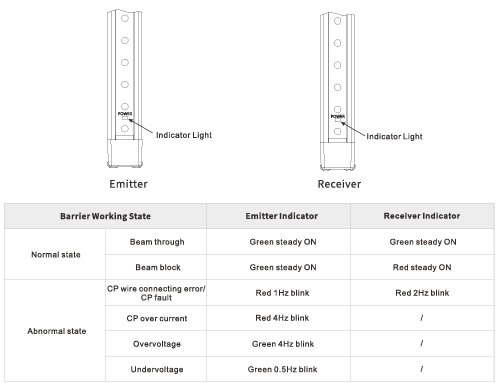

Indicator Light :
.png)

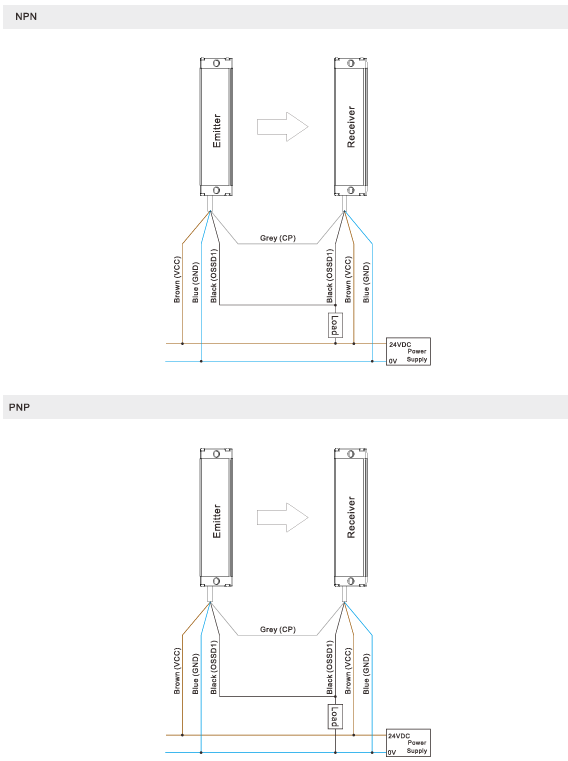

Wire Diagram :
.png)
Specifications :
| Power Supply | DC10V-30V |
| Capacity | <5W |
| Beam Space | 10mm, 20mm, 40mm |
| Resolution | 15mm, 25mm, 45mm |
| Beams | 10mm: 8, 12, 16,...160 |
| 20mm: 4, 6, 8,...80 | |
| 40mm: 4, 6, 8,...40 | |
| Protective Height | Protection height=(N-1)*beam space, N is beams |
| Light Wavelength | 940nm |
| Response Time | Response Time (N*0.1ms) + 0.4ms N is beams |
| Safety Output (OSSD) | PNP or NPN Load currents500mA (Temperature exceed 40°C≤400 mA), residual voltages1V (any voltage drop caused by cable extension is excepted,), voltage leakages0.1mA. |
| Protective Circuit | Overvoltage protection, power supply reverse protection and overcurrent protection. |
| Against Optical Interference | 10000 Lux (angle>2.5") |
| Sensing Distance | 0.1~0.5m, 0.1-2m, 0.1~4m |
| Sensing Method | Thru-beam |
| Synchronization | Wire synchronization |
| Enclosure Material | Aluminum alloy |
| Enclosure Protection Rate | IP54 |
| Sectional Size | 39 × 15mm |
| Ambient Operating Temperature | -10°C-55°C (no freezing) |
| Storage Temperature | -30°C~70°C (no freezing) |
| Ambient Operating Humidity | When temperature 20°C, the humidity max. 85% |
Bracket Options :
.png)
