Nylon 612 Cable Tie (CV-N612)
Model :
- CV-100N612
- CV-150N612
- CV-200N612
- CV-250N612
- CV-300SN612
- CV-368N612
- CV-370N612
Features :
- Material: UL94HB flame rated, UL approved Nylon 612.
- Color: Black.
- Feature: UV Resistant. Chemical Resistant (zinc chloride, hydrocarbons, salts, bases, acid rain, etc.)
- Application: Suitable for solar industry (wiring management for galvanized surfaces), and for the environment requiring resistance to outdoors aging and corrosion.

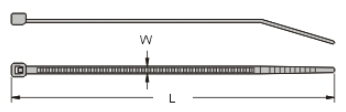

Dimension :
.png)
Specifications :
| Item No. | Length (L) (mm / inch) |
Width (W) (mm / inch) |
Min. Loop Tensile Strength (lbs / kgf / N) |
Max. Bundle Dia. |
Material | Flame Rated | Color | Certification | Packing |
| CV-100N612 | 100 / 4" | 2.5 / 0.1 | 18/08/1980 | 22 | NYLON 612 | UL94HB | Black | Halogen-Free,RoHS | 100pcs |
| CV-150N612 | 150 / 6" | 3.6 / 0.14 | 40 / 18 / 180 | 36 | NYLON 612 | UL94HB | Black | Halogen-Free,RoHS | 100pcs |
| CV-200N612 | 203 / 8" | 4.6 / 0.18 | 50 / 22 / 222 | 52 | NYLON 612 | UL94HB | Black | Halogen-Free,RoHS | 100pcs |
| CV-250N612 | 250 / 10" | 4.8 / 0.19 | 50 / 22 / 222 | 68 | NYLON 612 | UL94HB | Black | Halogen-Free,RoHS | 100pcs |
| CV-300SN612 | 300 / 11 7/8" | 4.8 / 0.19 | 50 / 22 / 222 | 83 | NYLON 612 | UL94HB | Black | Halogen-Free,RoHS | 100pcs |
| CV-368N612 | 368 / 14 1/2" | 4.8 / 0.19 | 50 / 22 / 222 | 105 | NYLON 612 | UL94HB | Black | Halogen-Free,RoHS | 100pcs |
| CV-370N612 | 370 / 14 9/16" | 7.6 / 0.3 | 120 / 55 / 534 | 101 | NYLON 612 | UL94HB | Black | Halogen-Free,RoHS | 100pcs |
